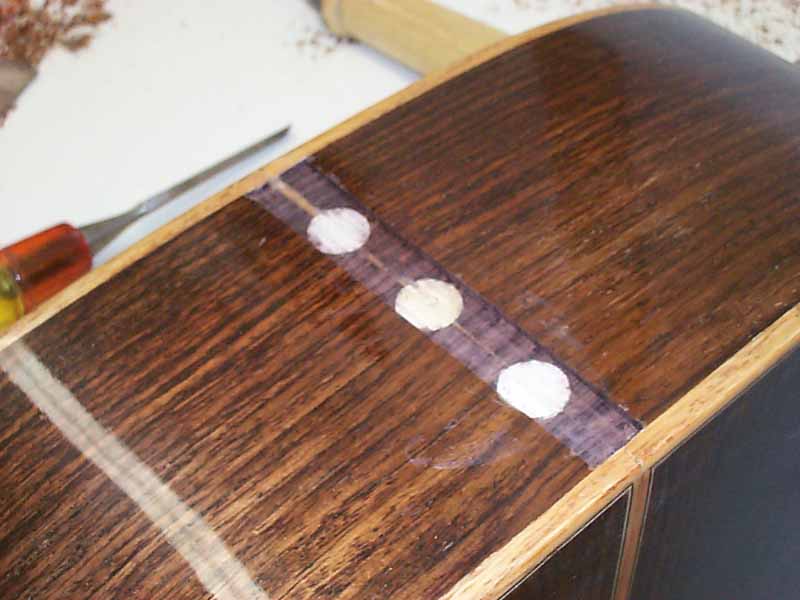

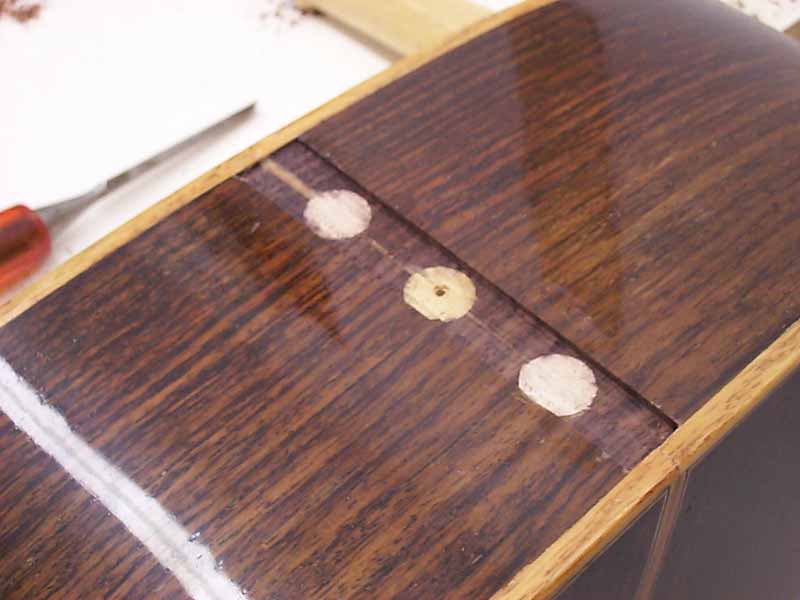

 There were 3 1/2" holes where the pickup jacks were mounted for the pickup test. I filled these holes, then...... ....routed the area for a new end graft to cover them permanently.  A new end graft of rosewood is precisely inlayed into the routed slot.

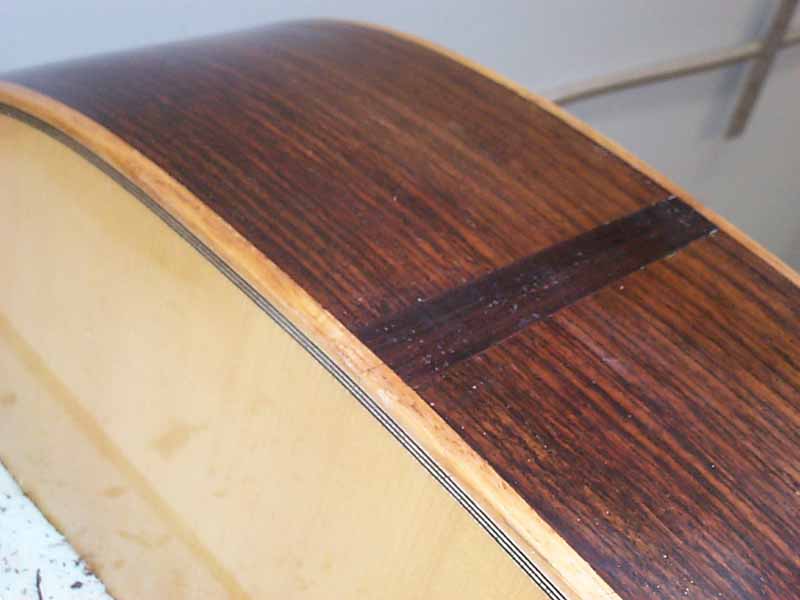

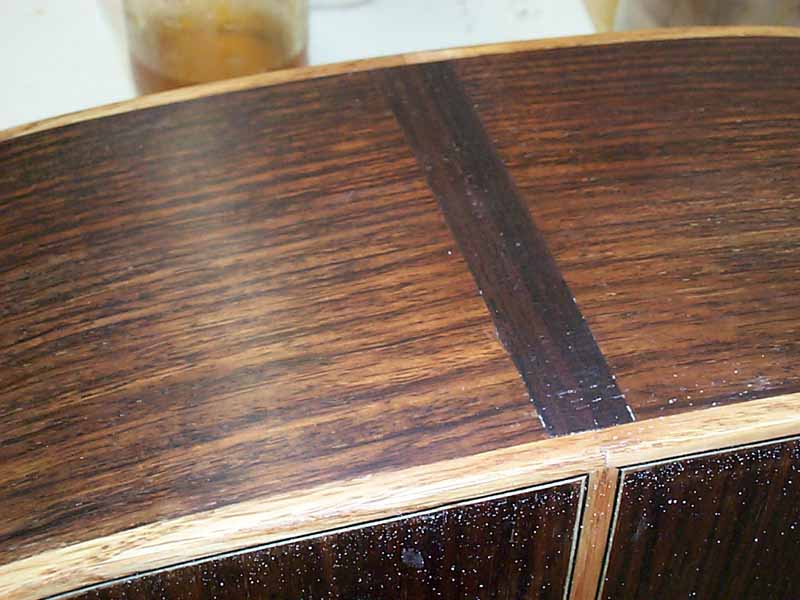

After scraping the inlay flush, we now need to re-do the finish, which includes filling the pores of the end graft's rosewood. A bit of french polishing fills everything nicely, and readies it for some nitrocellulose lacquer. Since this isn't an older instrument, I'm not concerned with saving the old finish, therefore we are going to over spray the sides all the way around. This will assure us that this "repair" will blend in invisibly. On a vintage instrument, we would have been very careful to minimize the area to be refinished, but that's not necessary with this one.  Since this was a mere prototype, the original machines were Grover Stat Tites, but we're going to add Waverly machines, now. In order to do so correctly, I filled the holes with maple "plugs", so that we may re-drill them to fit the Waverlies better.

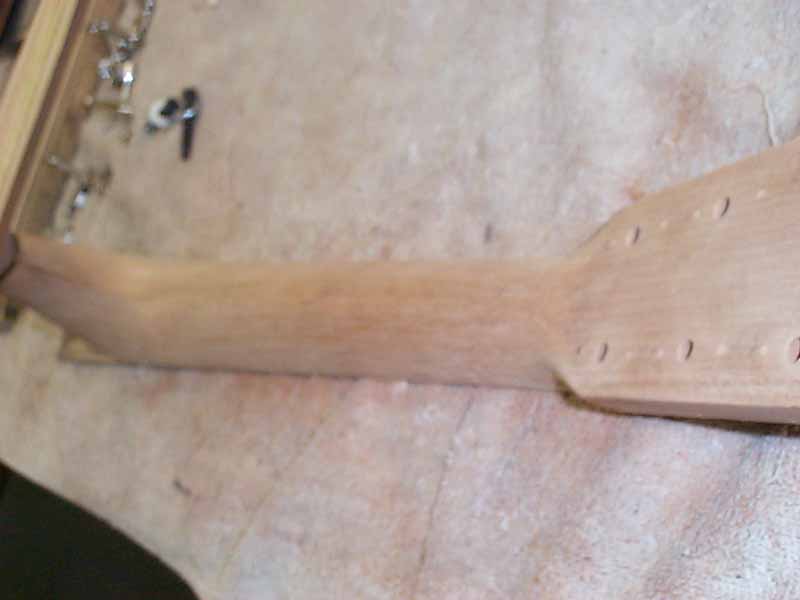

I also removed the headplate. I had originally cut a crude logo from sliced antler, but it didn't look very nice. Since we are going to fill the holes anyway, I decided to start fresh from end to end. The neck had also been r-carved by Bryan, but the finish wasn't the same on the shank as it was on the heel and headstock, so I stripped it completely, and will french polish it for a nice and even finish. I took great care not to mess with the profile that Bryan had carved; it is a nice feeling neck.
